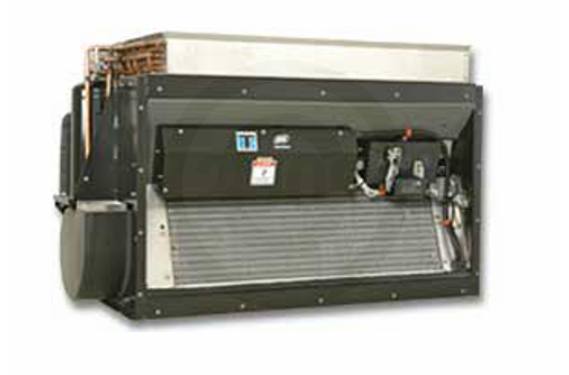

Thermo King T Series All-Electric HVAC
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Dramatically improved reliability
  • Integrated electric compressors with microprocessor control
  • Unit is charged and tested at factory
  • No belts or clutches to maintain
  • No tubing or hoses needed to connect unit and compressor
  • Reduced number of maintenance items
  • Big unit capacity at all bus speeds
  • Energy-efficient R-407C refrigerant
Optional and Accessory Equipment
  • IntelligAIRE microprocessor control system
  • IntelligAIRE II Smat-Pac diagnostics
  • Display panel for IntelligAIRE II
Specifications
  • Description: The electric T Series is a one-piece rear mount unit that is installed in the rear window area of the bus. This all-electric unit is charged, sealed and tested at the factory and is ready to operate as soon as the specified power requirements are connected. The scroll compressors, evaporator and condenser motors operate on 460VAC or 230VAC 3-phase 60hz power. The IntelligAire II microprocessor operates on 27VDC. The T Series all-electric unit is self-contained. The IntelligAire II microprocessor controls and monitors all unit modes and functions, including safety shutdown protection. Because of the unique split circuit design, the two scroll compressors can operate simultaneously or independently for optimum power and capacity management as power demands and cooling requirements vary. The treated condenser coil and the all aluminum frame resist corrosion.
  • Refrigerant Capacity: System net cooling capacity with 95 degrees F (35 degrees C) ambient, and 80 degrees F (26.7 degrees C) db, 67 degrees F (19.5 degrees C) wb evaporator return air (50% RH).
  • Net System Capacity - R407C: 81,000 Btu/hr (20,418 Kcal/hr), KW: 23.7
  • Refrigerant Charge: 16 lbs (7.3 kg)
  • System Heating Capacity: 90,000 Btu/hr (22,680 KCal/hr) at 8GPM and 160 degrees F water
  • Evaporator Airflow: 0 in. (0 mm) water column external static pressure
  • High Speed Fan: Standard - 2250 cfm (3825 m³/hr)
  • Low Speed Fan: Standard - 1550 cfm (2635 m³/hr)
  • Unit Operation: AUTO, COOL, HEAT and VENT modes may be selected through hard-wired switches or optional display panel. The dual scroll compressors are thermostatically controlled for 2-stage capacity control in the cool mode. The 2-speed evaporator and condenser motors are thermostatically controlled based on operating conditions.
  • Compressors: Copeland ZR61K3E-TF5 (2)
  • Electrical Power Requirements: 24VDC Controls - 2 Amps, 230VAC - 60 Amps, 460VAC - 30 Amps
  • Evaporator Motor: 230V/3PH/60HZ, Speed and Current Draw: High Speed - 1750 rpm @ 5.2 amps, Low Speed - 1140 rpm @ 3.0 amps, 1.7 Horsepower
  • Condenser Motors: 230V/3PH/60HZ, Speed and Current Draw:  750 rpm @ 3.4 amps, 1.0 Horsepower
  • Weight: 653 lbs (297 kg)
  • Dimensions: Height: 37.2 in. (944.9 mm), Width: 64.27 in. (1632.5 mm), Depth: 25.88 in. (657.4 mm)

Specifications

Capacities
Cooling Capacity Net System Capacity - R407C: 81,000 Btu/hr (20,418 Kcal/hr), KW: 23.7
Heating Capacity 90,000 Btu/hr (22,680 KCal/hr) at 8GPM and 160 degrees F water
Airflow
Airflow Volume High Speed Fan: 2250 cfm (3825 m³/hr), Low Speed Fan: 1550 cfm (2635 m³/hr)
General
Weight 653 lbs (297 kg)
Dimensions Height: 37.2 in. (944.9 mm), Width: 64.27 in. (1632.5 mm), Depth: 25.88 in. (657.4 mm)

Compare Models

 Print








Year 2009
Manufacturer Thermo King
Model T Series All-Electric HVAC
Airflow
Airflow Volume High Speed Fan: 2250 cfm (3825 m³/hr), Low Speed Fan: 1550 cfm (2635 m³/hr)
Discharge Velocity (airthrow)
Capacities
Cooling Capacity Net System Capacity - R407C: 81,000 Btu/hr (20,418 Kcal/hr), KW: 23.7
Heating Capacity 90,000 Btu/hr (22,680 KCal/hr) at 8GPM and 160 degrees F water
General
Weight 653 lbs (297 kg)
Dimensions Height: 37.2 in. (944.9 mm), Width: 64.27 in. (1632.5 mm), Depth: 25.88 in. (657.4 mm)
